Sentinel Integration

13 min

This guide replaces the previous Azure Sentinel Integration. The new Codeless Connector Framework (CCF) integration offers a streamlined, "click-to-deploy" experience available directly within the Microsoft Sentinel Content Hub. This update significantly reduces the manual configuration required to ingest Flare events into Azure.

The CCF enables partners and developers to create robust, custom connectors for seamless data ingestion into Microsoft Sentinel.

Please note, if you currently are using the Flare connector this will create a second table within Sentinel. It is recommended to sunset the older connector and migrate to this one.

Azure Sentinel Setup

Install Flare via the Content Hub

The first step is to install the Flare Solution and deploy the Codeless Connector. This connector automatically receives Flare events and transforms them into queryable logs within Sentinel.

Navigate to Microsoft Sentinel > Content management > Content Hub.

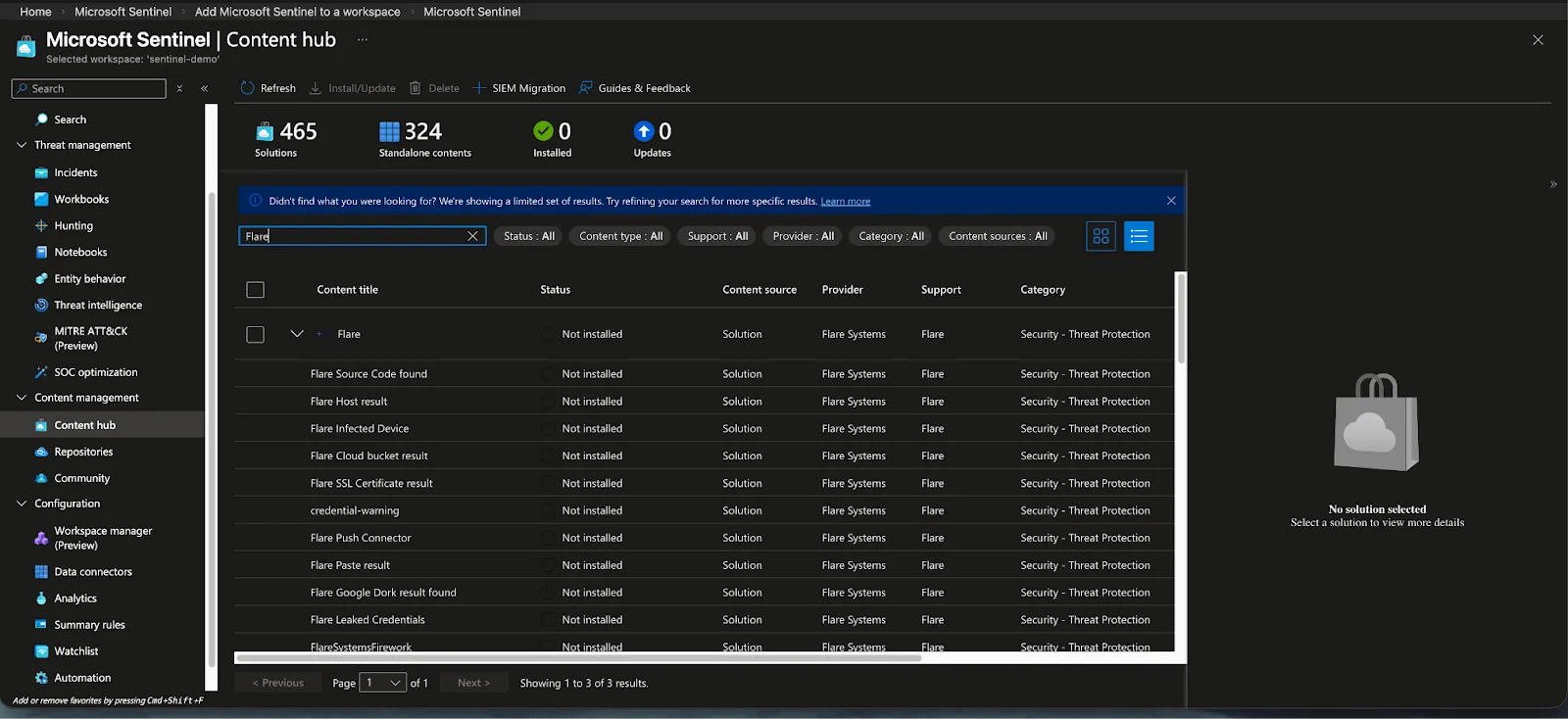

Search for “Flare” in the search bar.

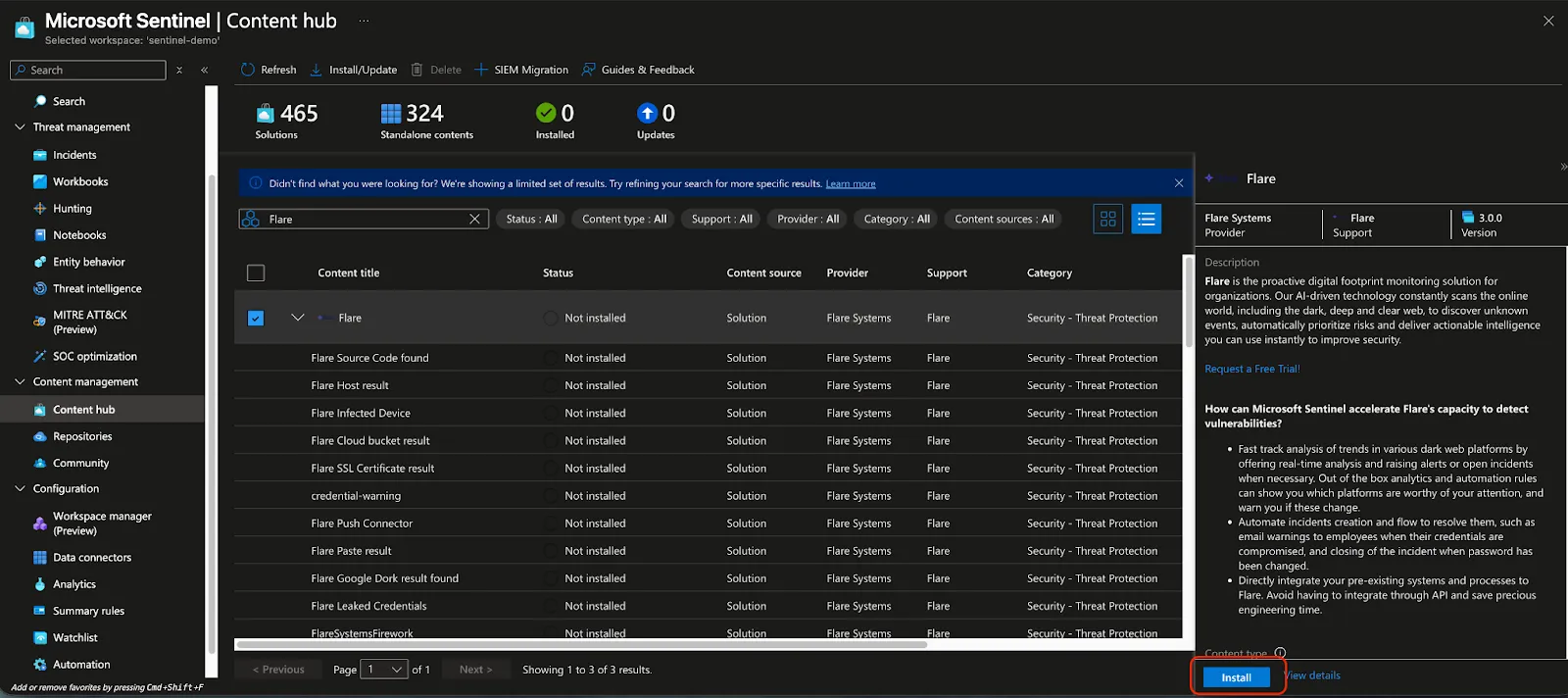

Select the Flare solution and click Install. Deployment typically takes a few seconds.

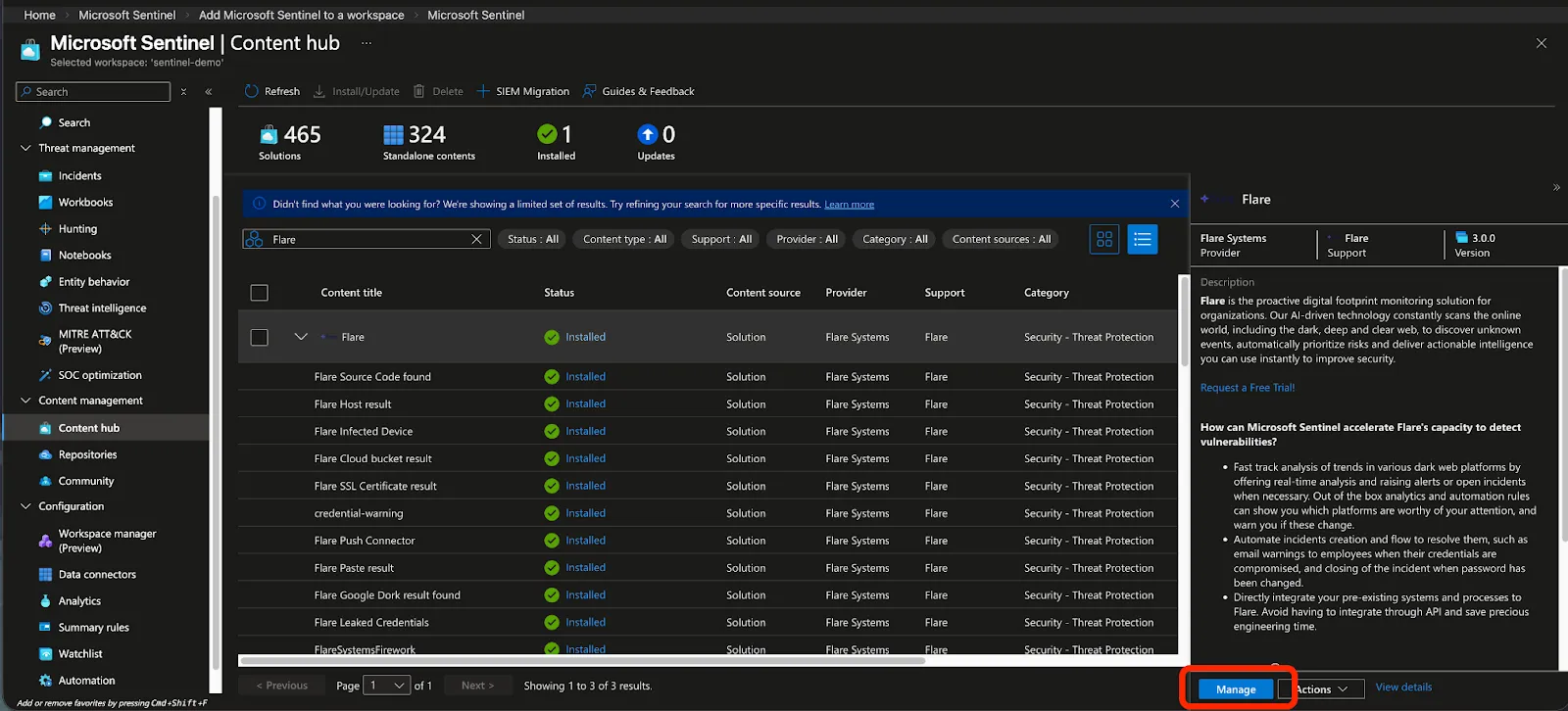

Once installed, click Manage.

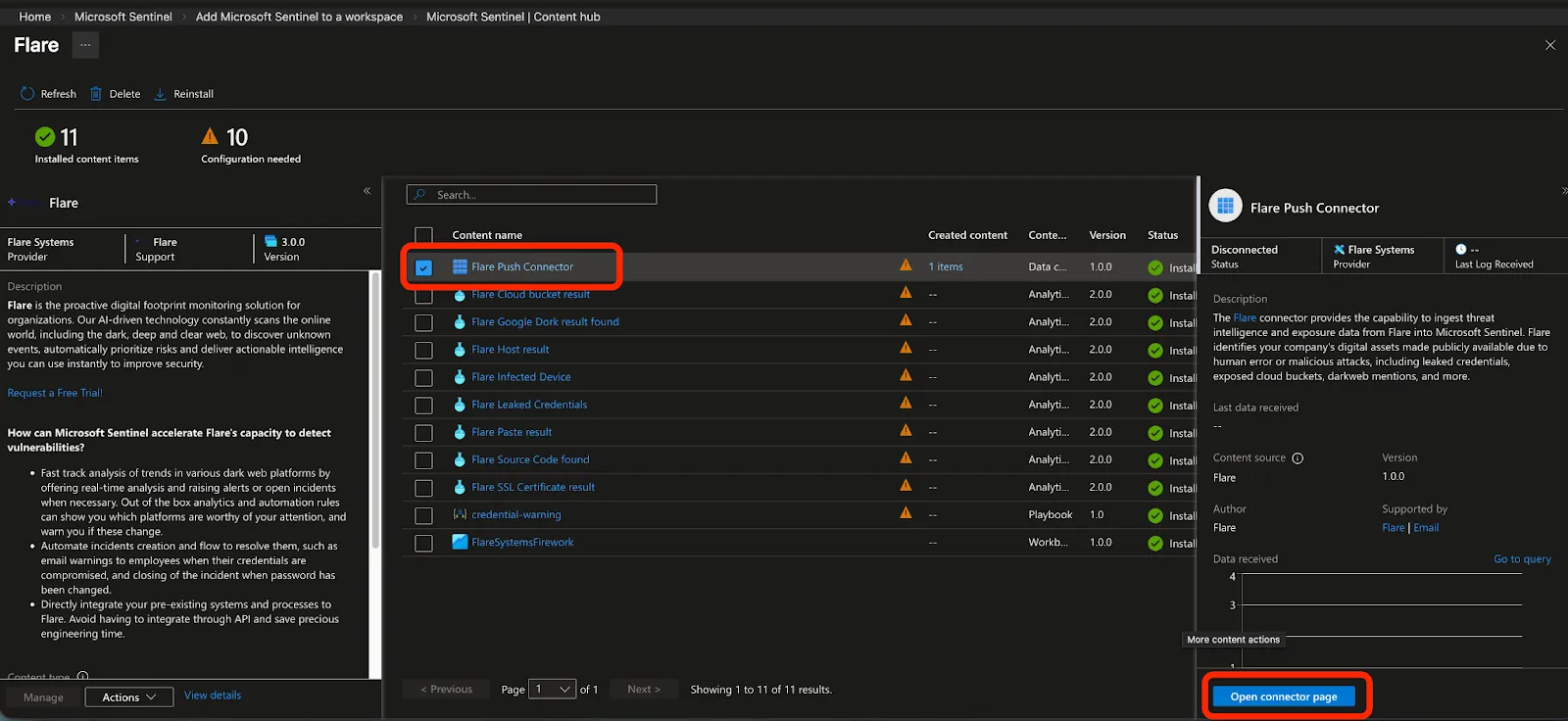

Select Flare Push Connector and click Open connector page

Deploy Custom Resources

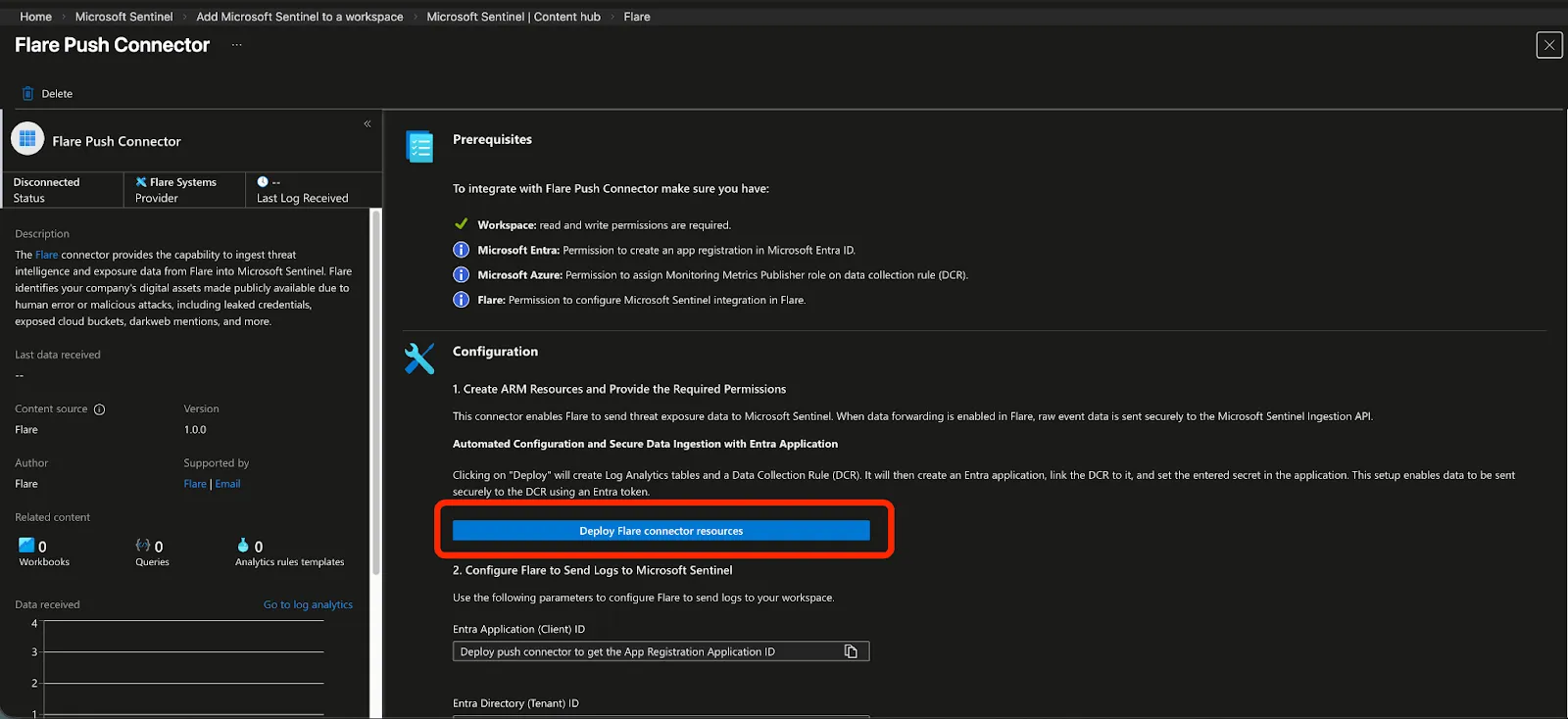

On the connector page, select Deploy custom resources and accept the confirmation prompt.

This will automatically create Azure resources, including an Application Secret valid for 731 days. This is a default value which we do not control in the Connector's form. See the Secrets Management section below for more details on how to manage this secret.

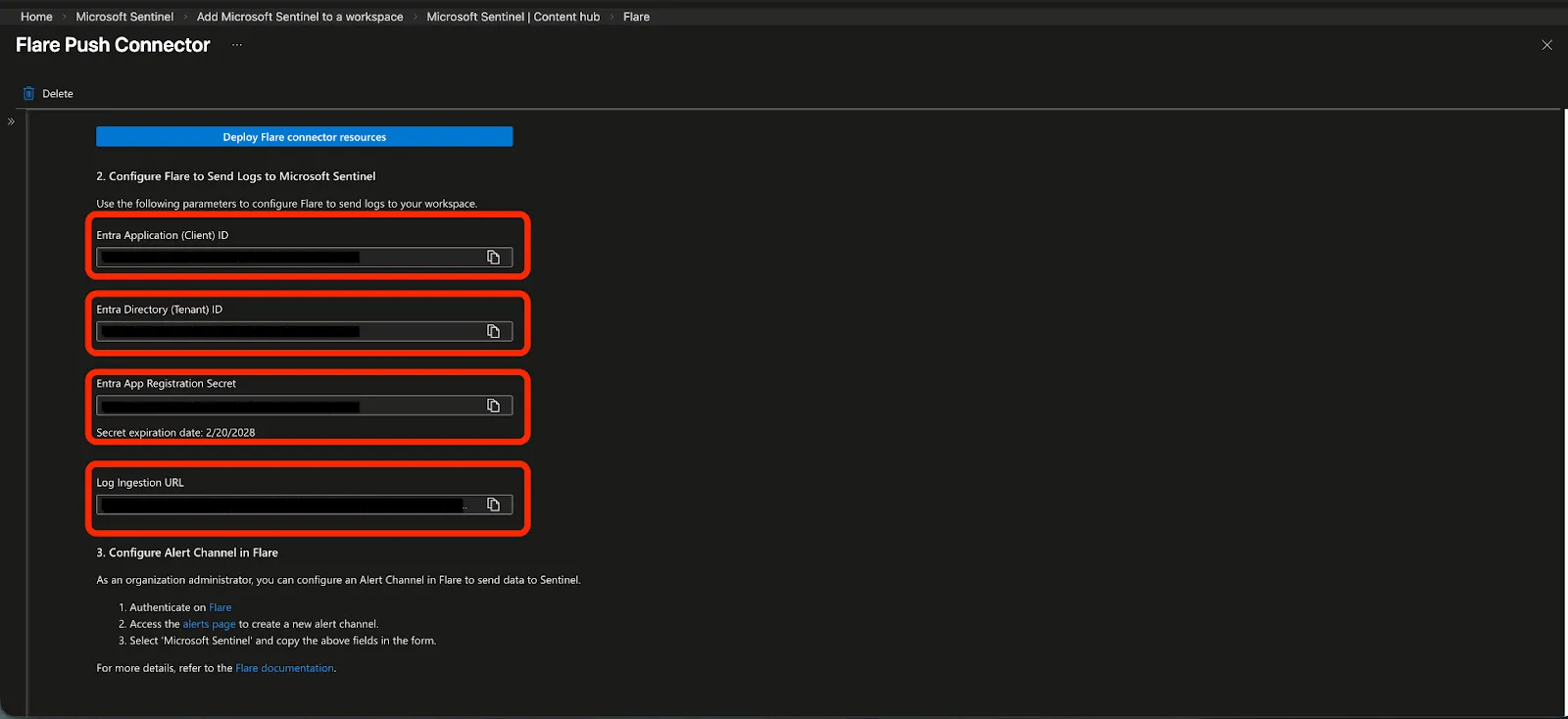

Once the deployment is complete, several configuration fields will automatically be populated. Keep this page open, as you will need these values to link Flare to Azure Sentinel.

Flare Setup

Setup the Integration Channel

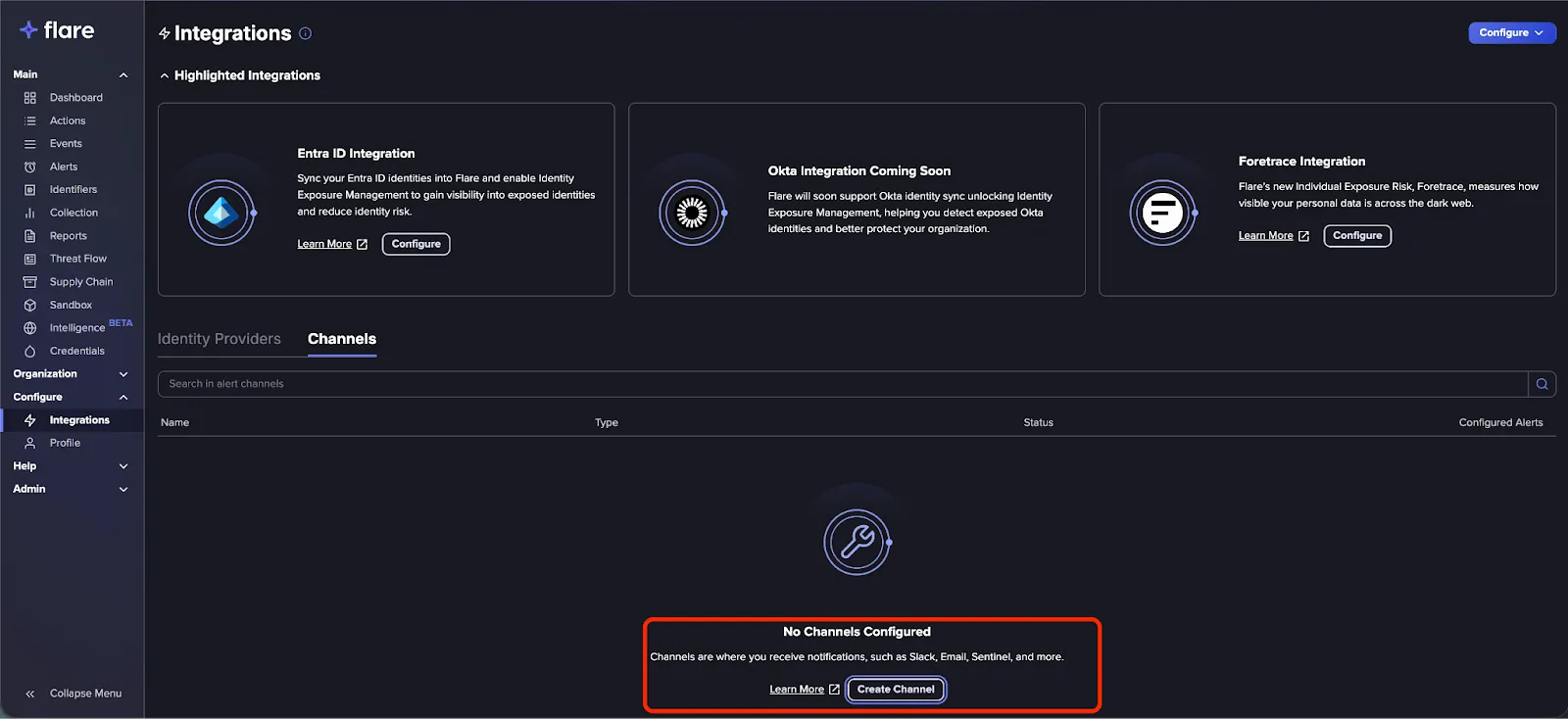

In the Flare platform, navigate to Configure > Integrations and select Create Channel.

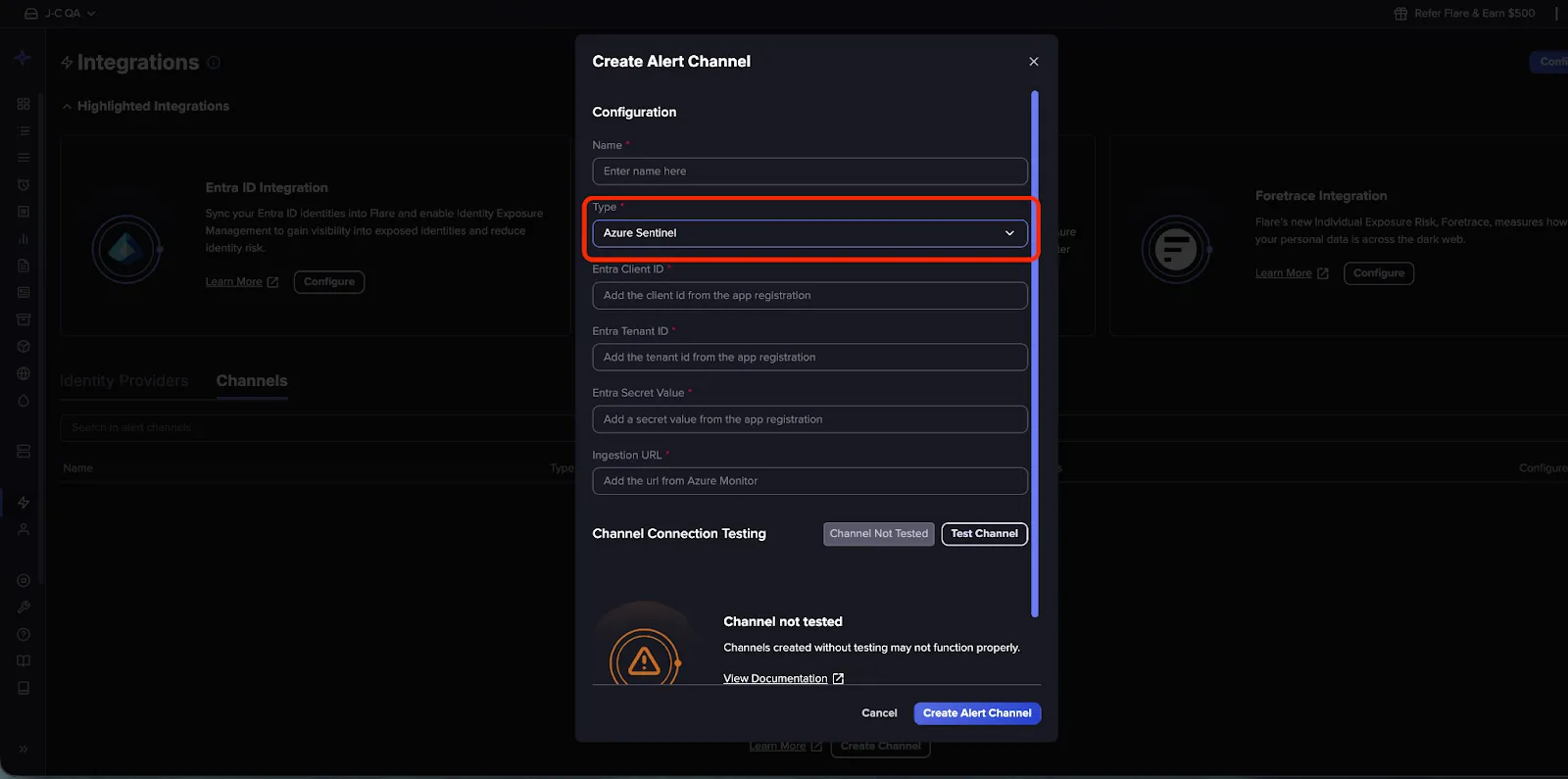

In the modal, select Azure Sentinel from the dropdown menu.

Copy the values from the Sentinel Connector Page into into the corresponding fields.

Verify and Finalize

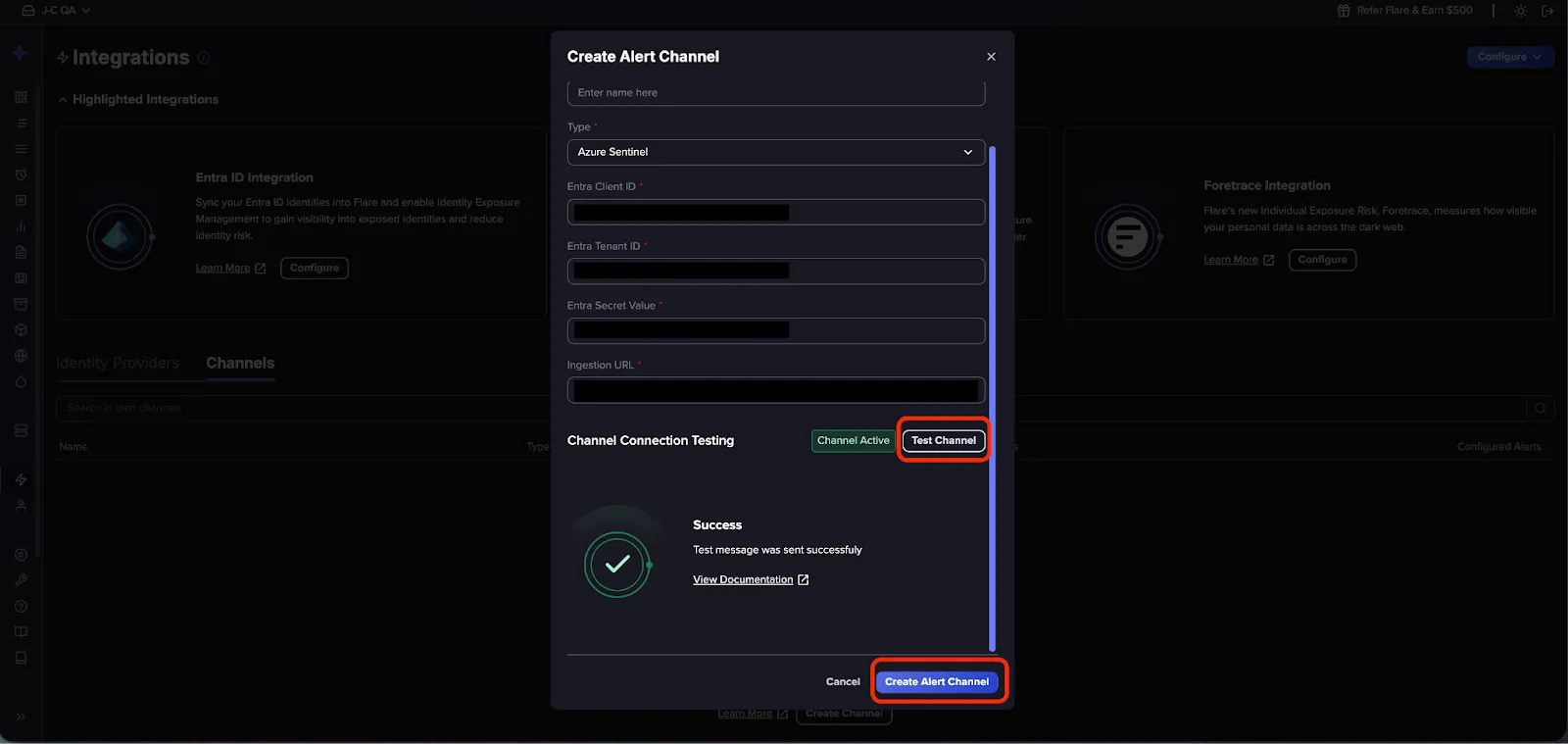

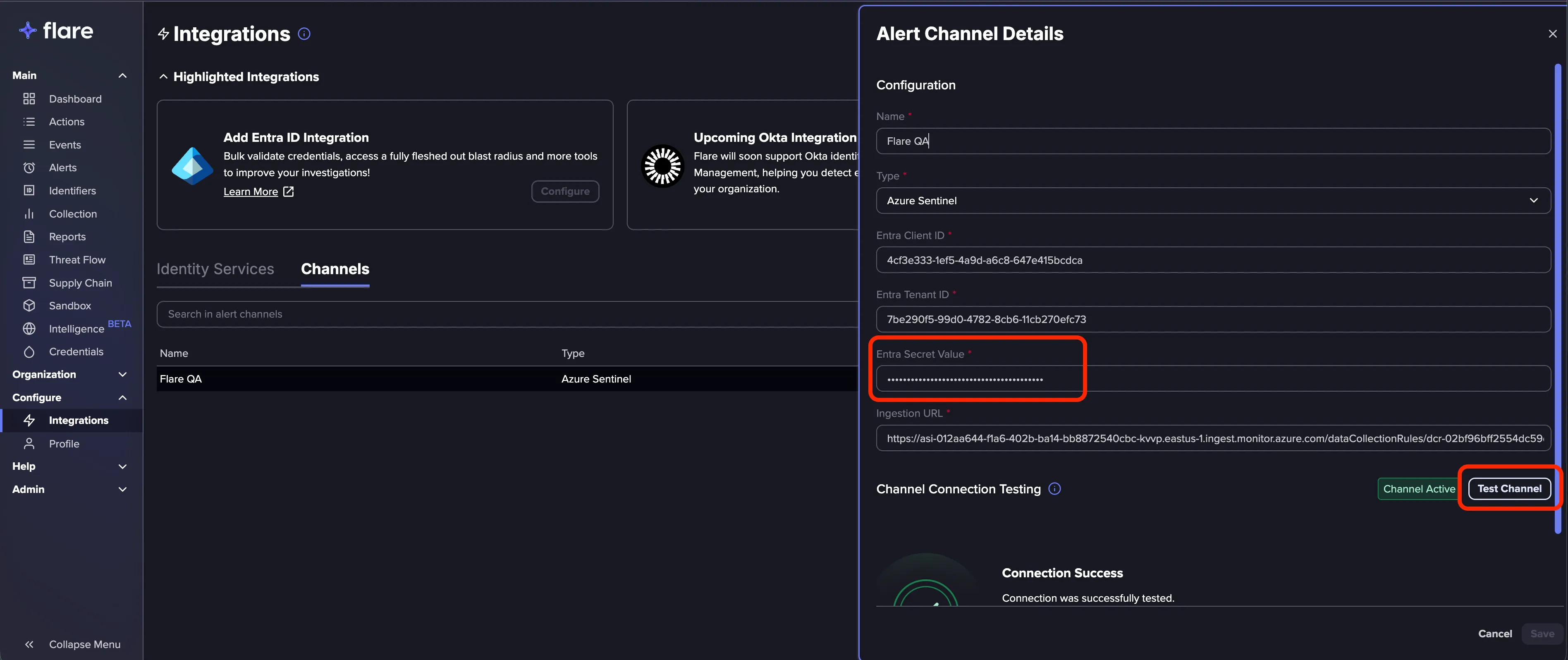

Press Test Channel to verify the connection.

Once the test is successful, click Create Channel to finalize the integration.

Secrets Management

When the Flare Connector is deployed using the one-click deployment button, Azure automatically creates a Data Collection Endpoint (DCE) along with an App Registration and a client secret valid for 731 days. If a shorter-lived secret is required, revoke the existing secret and create a new one by following the steps below.

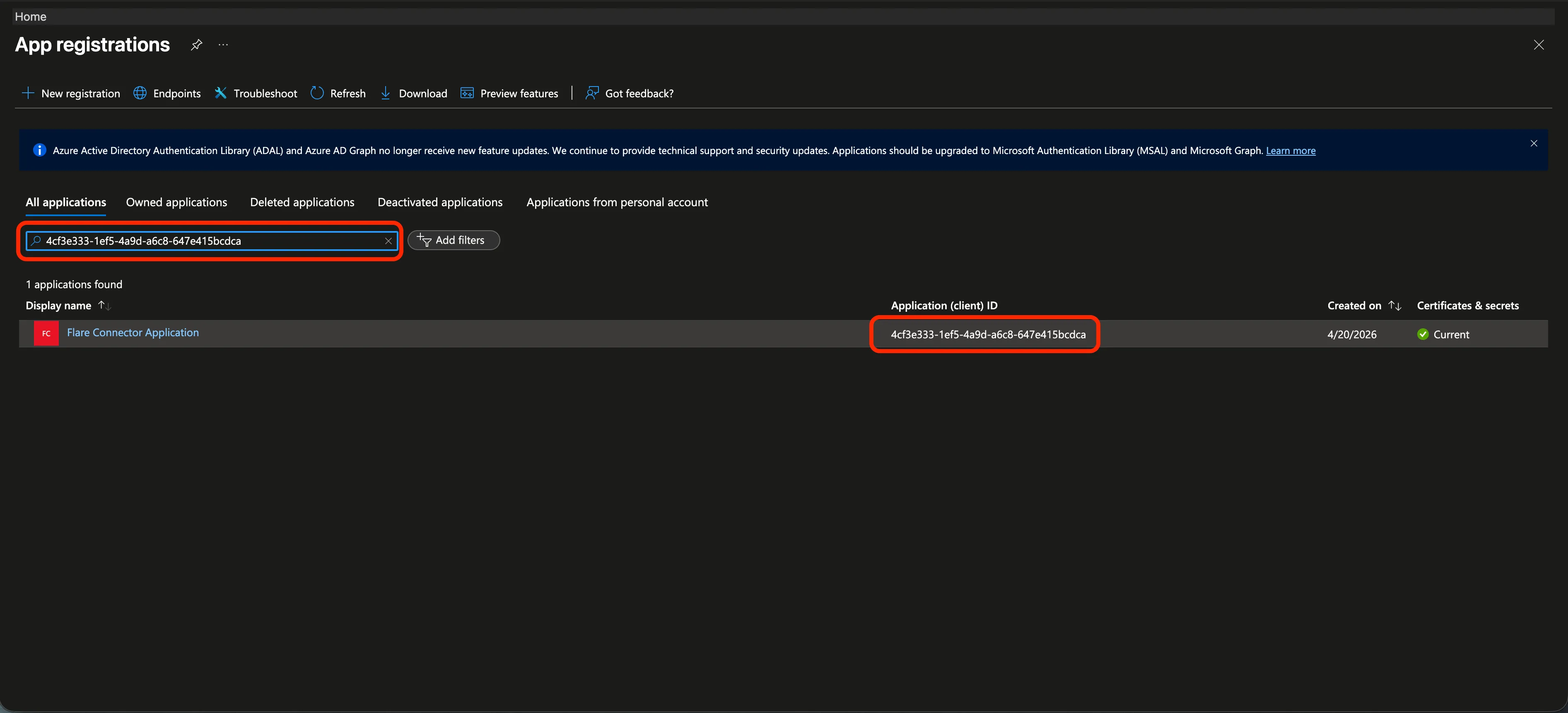

In Azure, navigate to the App Registrations page, then select the relevant App Registration. To quickly locate it, filter by the Application ID (Entra Client ID).

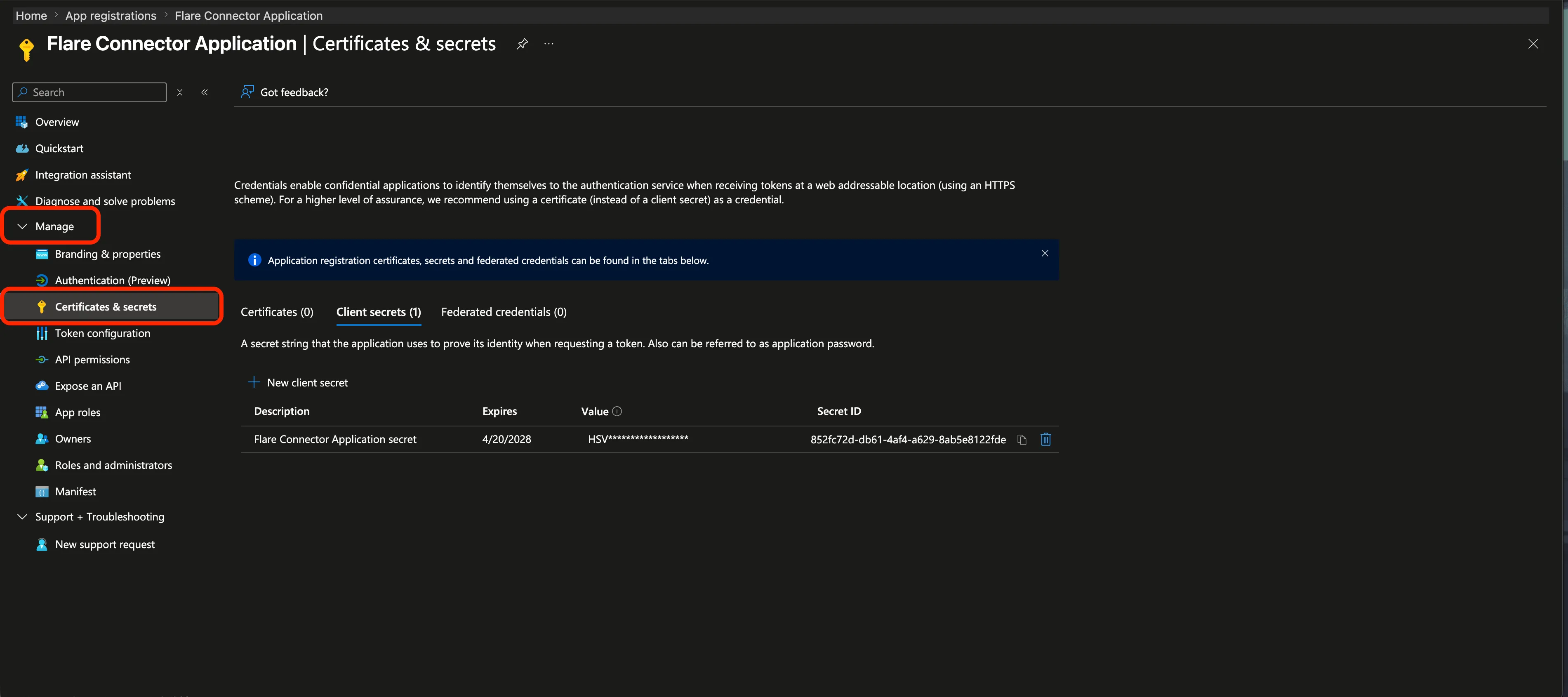

Under Manage > Credentials & secrets, your existing secrets are listed.

Revoking a secret

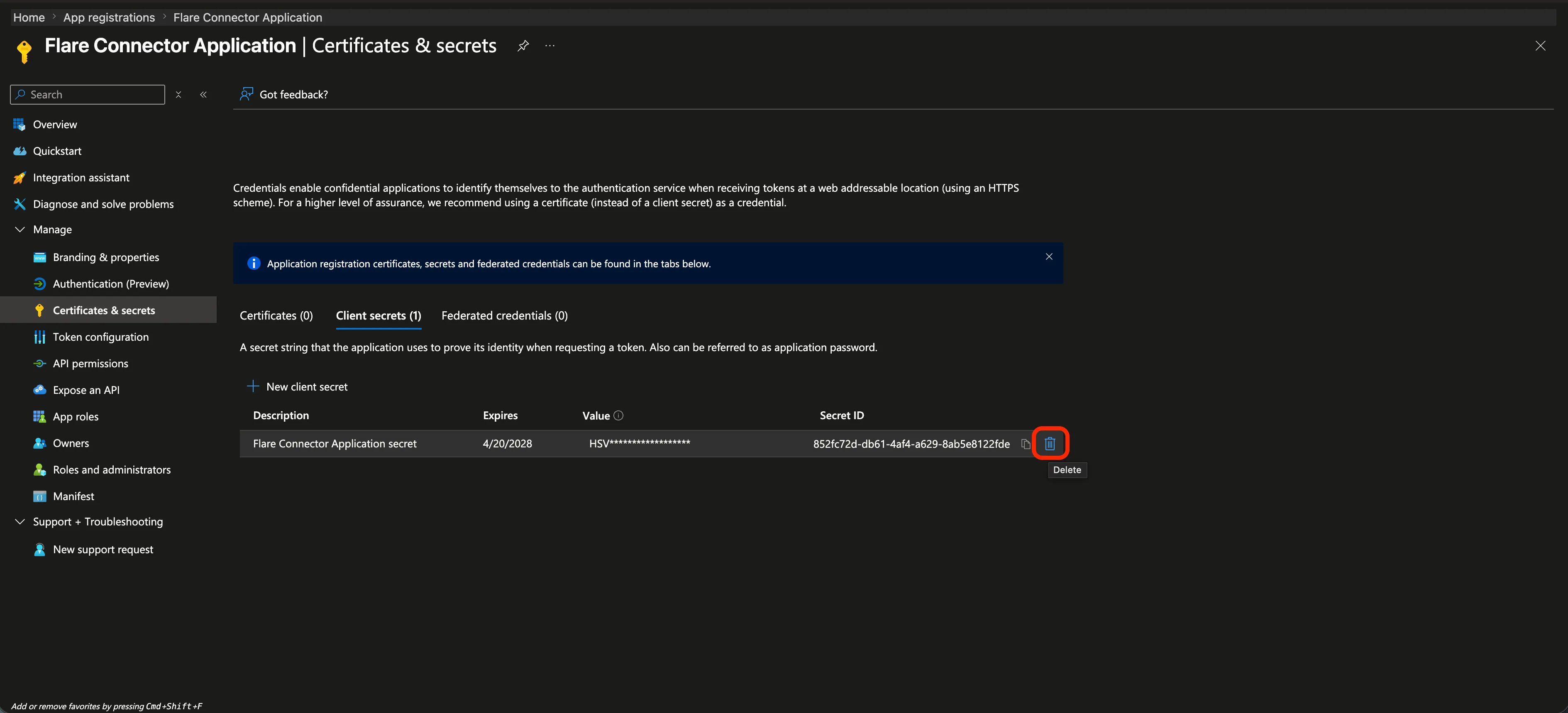

Press the trash icon next to the secret you want to remove. This immediately disables the integration - any request from Flare will be rejected until a new secret is configured.

Creating a secret

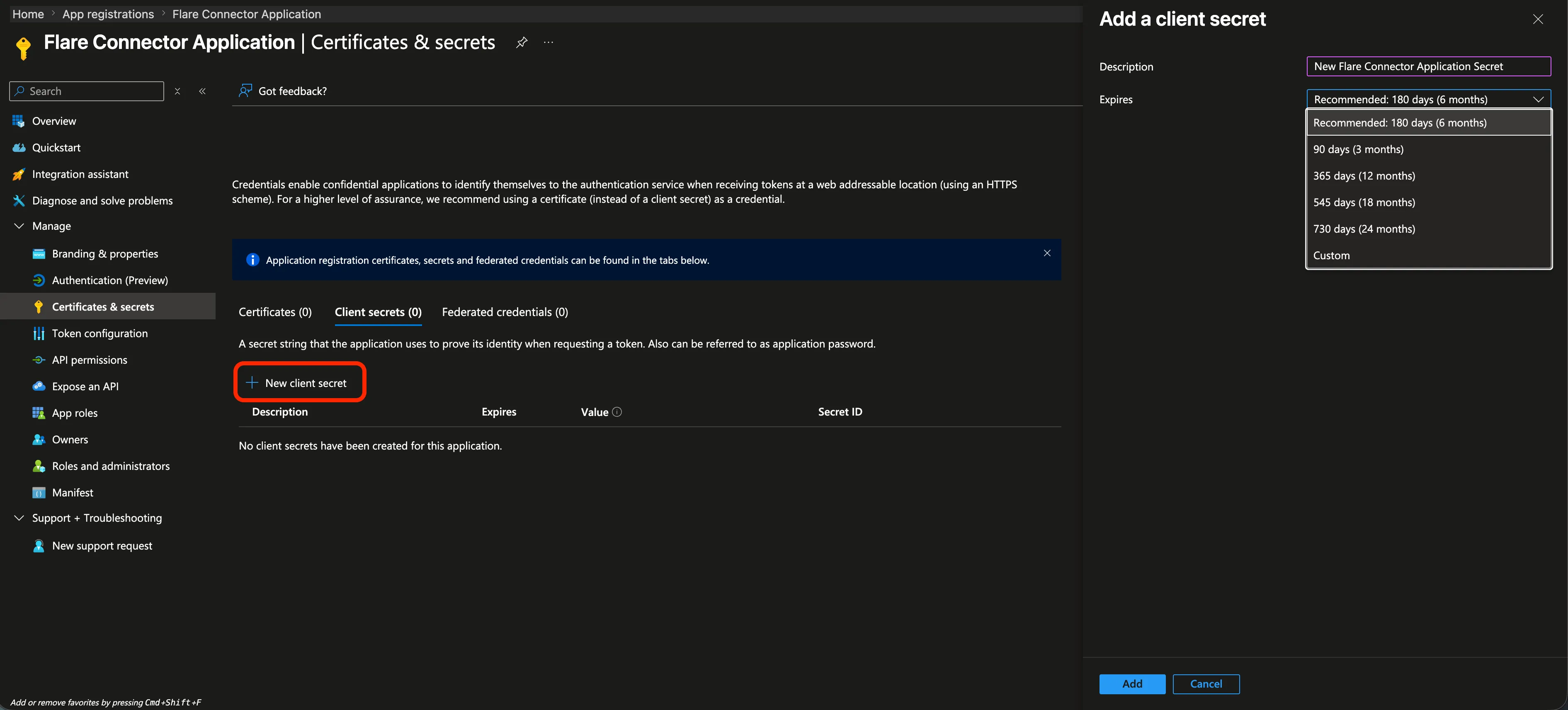

Click New client secret to open the creation form, where you can configure the secret's expiration date.

Once the new secret is created, make sure to update it in Flare and verify the integration is working using the Test Channel button.

Flare Solution Features

The Flare Solution includes pre-packaged Analytic Rules and Workbooks to help you monitor and visualize your data. They must be manually deployed through Azure Sentinel.

Note on Initial Setup: Analytic rules and workbooks will likely display error messages until the connector receives its first set of data. These components will remain inactive on fresh instances until data ingestion begins.

Analytic Rules

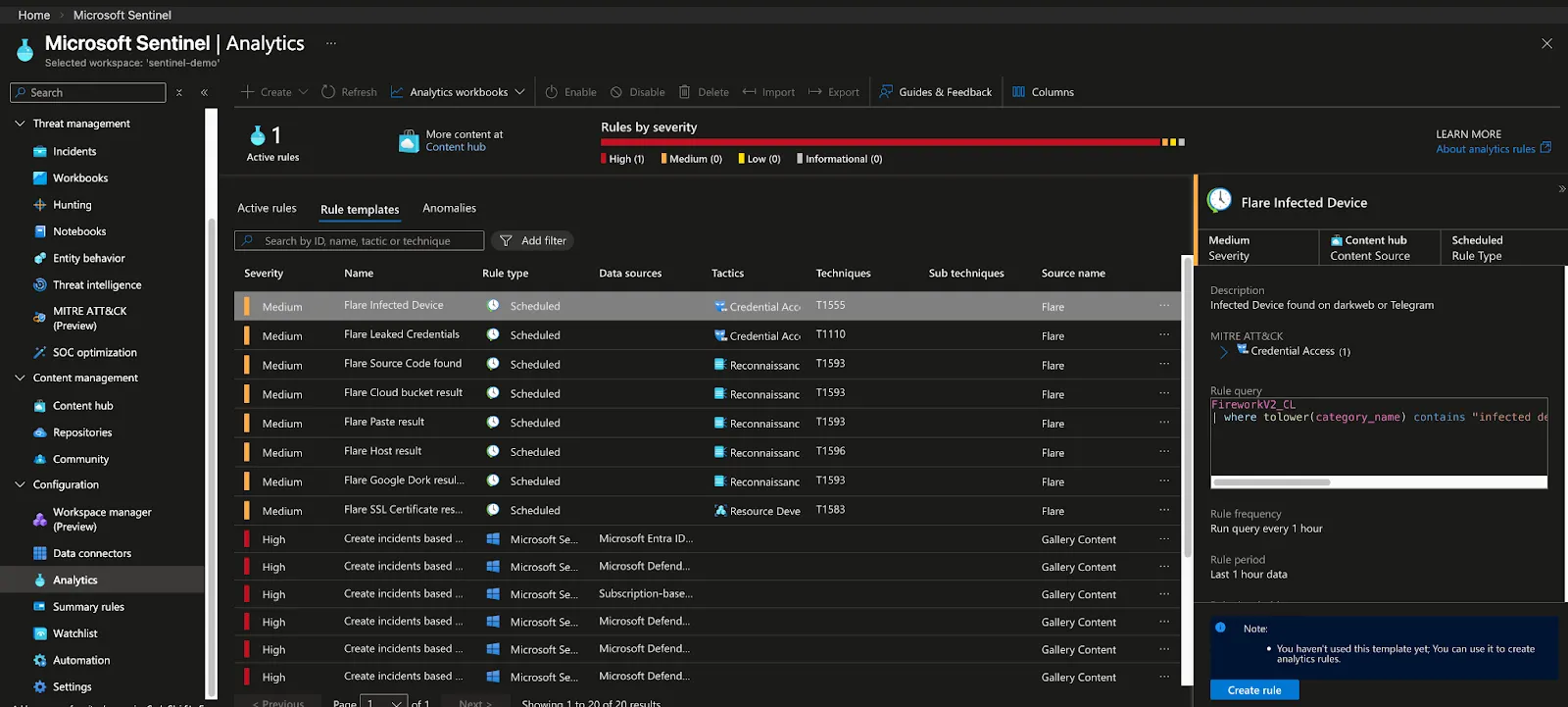

Analytic Rules enable automated alerting based on Kusto Query Language (KQL). These rules help you identify specific security threats as they appear in your logs. They can be configured from Azure Sentinel > Configuration > Analytics > Rules templates.

Workbooks

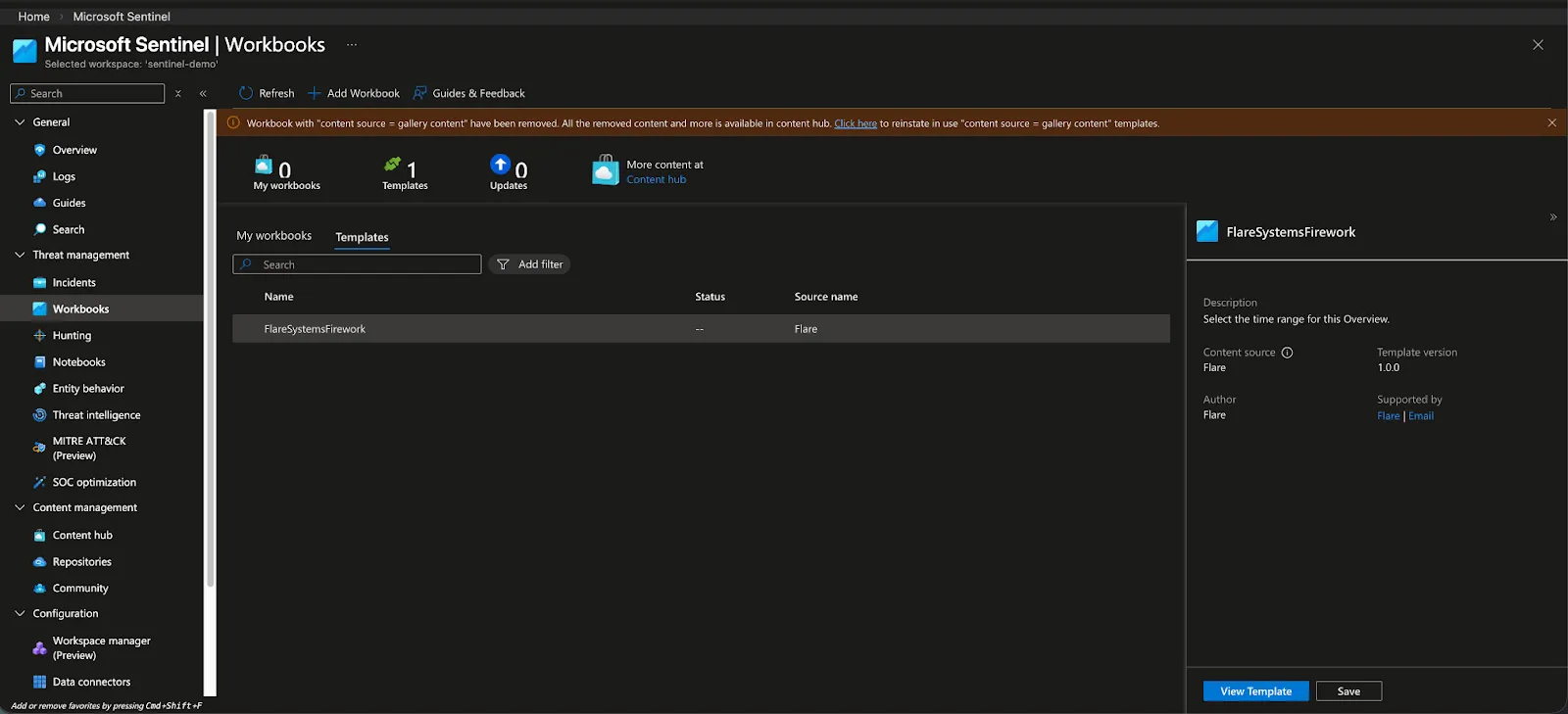

Workbooks provide interactive data visualizations for Flare events directly within the Sentinel dashboard. They are located in Azure Sentinel > Threat management > Workbooks > Templates.

Flare includes three basic workbooks: Firework Logs by risk score, Sources of all documents collected and Total Leaked Credentials received.

Firework Logs by Risk Score: This chart displays log activity sourced from Flare over the past 30 days, broken down by risk score level. Each line represents a distinct risk score category.

Sources of All Document Collected: This section displays the origin of all threat intelligence documents ingested over the past 30 days, broken down by source.

Total Leaked Credentials Received: This section is deprecated and will be removed in the next release. It displays a time series of credential leak events.

Flare Solution Schema

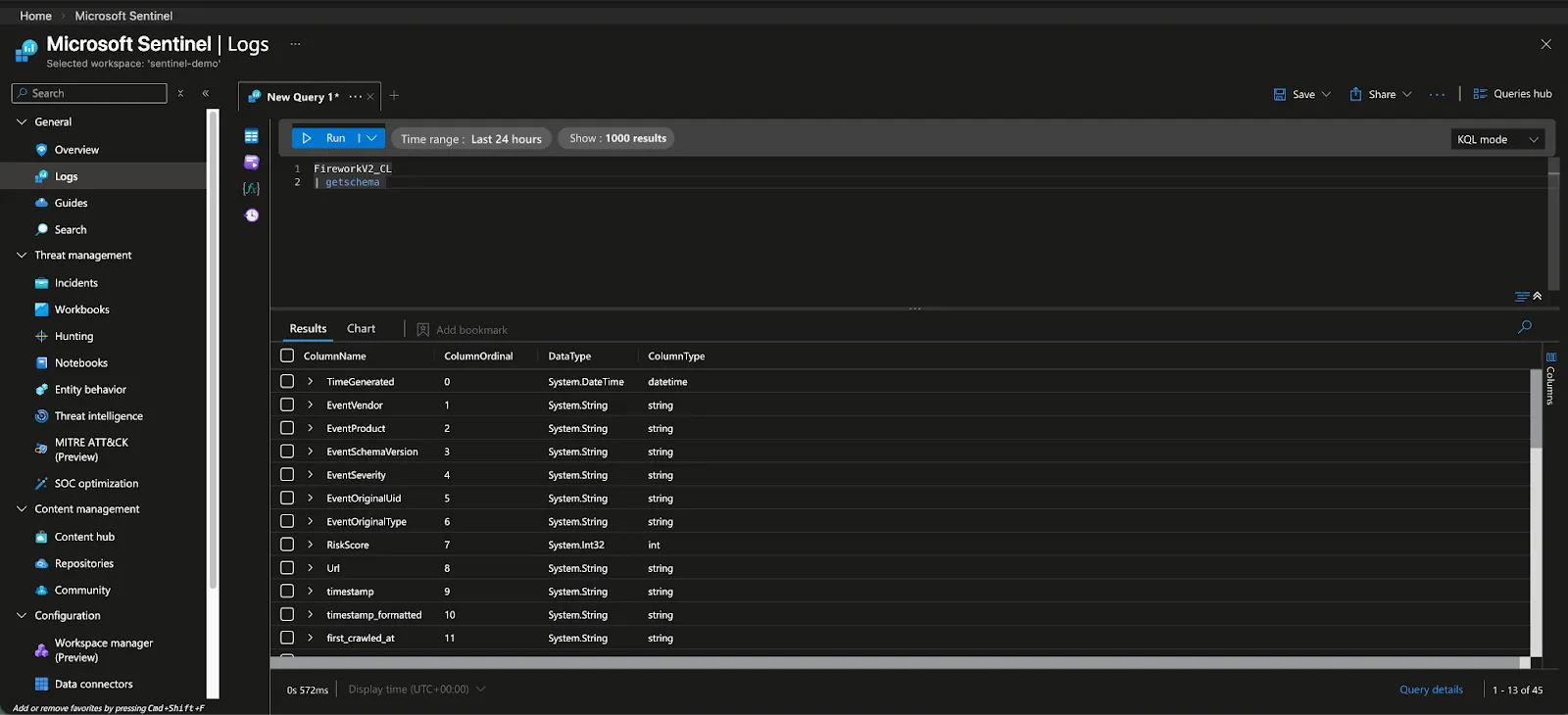

To understand how Flare data is structured or to build your own custom queries, you can inspect the data model using the following KQL command in the Logs interface accessible under Azure Sentinel > Logs

FireworkV2_CL | getschema

For reference, here is the latest schema:

Column Name	Type	Example
TimeGenerated	Datetime (UTC)	2026-02-17T15:06:35.7076596Z
EventVendor	string	Flare
EventProduct	string	Firework
EventSchemaVersion	string	0.1
EventSeverity	string	Informational
EventOriginalUid	string	domain/driller_dnstwist/clare.io
EventOriginalType	string	domain
RiskScore	int	1
Url	Optional string	https://app.flare.io/events/test-social_media_account
timestamp	Optional string	2026-01-20T20:07:44.0633340+00:00
timestamp_formatted	Optional string
first_crawled_at	Optional string	2026-01-20T20:07:44.0633340+00:00
materialized_at	Optional string	2026-01-20T20:13:20.7334390+00:00
url	Optional string
event_title	Optional string	clare.io
event_type	Optional string	domain
source	Optional string	driller_dnstwist
source_name	Optional string	dnstwist
id	Optional string	clare.io
keyword	Optional string
category_name	Optional string	domain
content_preview	Optional dynamic object	Domain clare.io
content	Optional string
alert_content	Optional string
highlights	Optional dynamic object	{"identifier_domain":["<mark>flare.io</mark>"]}
risk	Optional dynamic object	{"score":1,"unit_score":0.1,"risk_score":1,"service_score":1}
tags	Optional dynamic object	[]
related	Optional dynamic object	[]
user_risk_score	Optional int
user_notes	Optional string
data	Optional dynamic object	{"username":"@fake_example_corp","platform":"Twitter","followers":1500}
uid	Optional string	domain/driller_dnstwist/clare.io
external_url	Optional string
		[{"id":14771403,"type":"domain","name":"flare.io","group":null}]
sort	Optional string	WzE3Njg5NDAwMDA3MzMsICJkb21haW4vZHJpbGxlcl9kbnN0d2lzdC9jbGFyZS5pbyJd
Identifiers	Optional Dynamic Object
asset_uuids	Optional dynamic object
code	Optional dynamic object
author_id	Optional string
project_name	Optional string
sha	Optional string
actor	Optional string	WWW
victim_name	Optional string
TenantId	Optional string	ea21e035-057f-483d-aad9-f436617a24a6
Type	Optional string	FireworkV2_CL
_ResourceId	Optional string
